What Are Gantt Charts? Definitions, Functions and Examples
| Translated by Julian Hammer
A Gantt chart is a visual tool for project planning. It visualizes tasks, milestones and time frames in the form of bars on a timeline. It was developed by Henry Gantt in the early 20th century.
What is a Gantt chart used for? Gantt charts are used in project management to structure complex processes, monitor the progress of a project and visualize dependencies between tasks.
One of the central elements of a Gantt chart is the timeline which shows the progress of the project. Horizontal bars show the duration of the individual tasks and are complemented by milestones that mark important interim goals. In addition, finish-to-start dependencies between tasks are represented by connecting lines. This visualizes which tasks can only be started once the previous task has been completed.
The critical path is particularly highlighted in a Gantt chart. It identifies all tasks the delay of which in turn leads to a delay of the entire project. With the help of the critical path, project managers can identify bottlenecks at an early stage and take appropriate counter measures.
In this article, we explain how to create a Gantt chart and use it in project management. With the right project management software, updates and dependencies can be managed seamlessly within the diagram so that their impact on the overall project is immediately apparent.
What Are Gantt Charts Used for?
Gantt charts are used in different sectors as a component of successful project planning.
- In the IT sector, e.g., Gantt charts serve to control software development projects in which teams simultaneously work on modules that are based on one another. The visualization of dependencies ensures that tests only begin when development is completed.
- In research and development (R&D), departments such as basic research, prototype development and testing must cooperate closely. Gantt charts facilitate the planning of iteration cycles.
- In the pharmaceutical industry, Gantt charts are used for clinical studies, drug authorization and regulatory processes. Here, the presentation of milestones is particularly crucial, as each stage of study protocols or regulatory approvals is subject to clearly defined deadlines.
However, Gantt charts can be used in any sector in which project management software is used.
A delay can be represented by moving or extending the task bar, whereby the completion of the project is also postponed in the case of critical tasks without buffer time. Project management software will automatically calculate this delay.
Milestones also play a central role, as they mark important intermediate goals within a project. They serve as control points at which it is checked whether the project is on schedule or whether adjustments are necessary. Milestones are crucial for risk management and risk control as well as adherence to deadlines, especially in long-term and regulatory demanding projects.
How to Create a Gantt Chart?

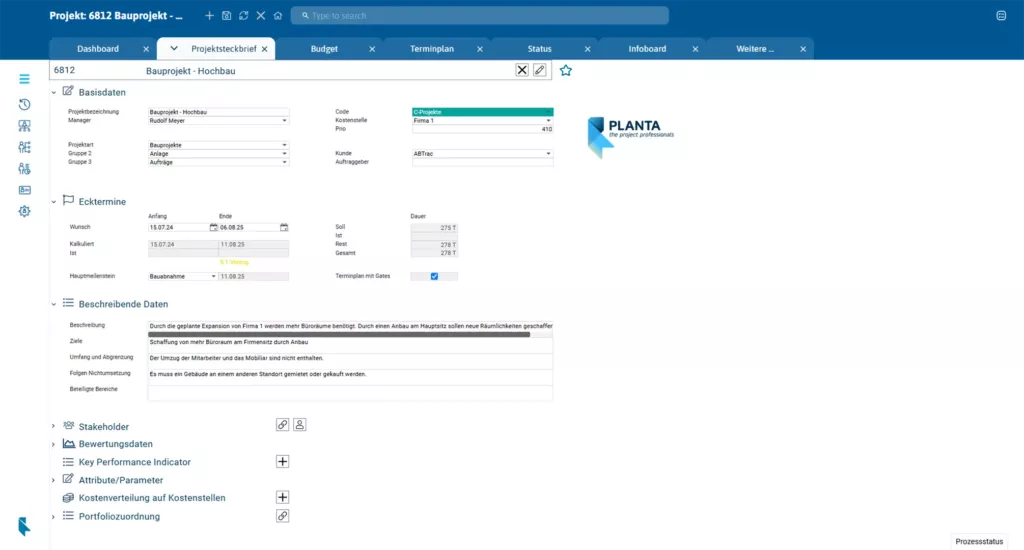

A Gantt chart in PLANTA Project can be created by carrying out the steps described below. It is important to create the project structure before proceeding with the scheduling:
- Create a project: First, a new project is created and provided with basic data such as the start and end date.
- Select a project template: A suitable Gantt chart template, e.g. for an IT project, is then selected in the schedule module or a project is created manually.
- Add tasks: Tasks are created, start and end dates are set and linked via dependencies.
- Set marks using milestones: Milestones mark the end of important phases and have no duration.
- Identify the critical path: Identification is carried out via the Schedule module. It shows the tasks without buffer time that determine the project duration and affect the entire project in the event of a delay.
Step 1: Define project objectives and tasks
In PLANTA Project, Gantt chart creation starts with the creation of a project structure including the definition of project objectives and tasks. First, the main objectives of the project are defined and broken down into specific individual tasks.
Persons responsible, deadlines and priorities are assigned to each activity. This data is then entered in the project overview and in the schedule in PLANTA. Here, existing templates can be used or individual schedules can be created.
The work breakdown structure shows the clear structure with main tasks and sub-tasks and helps to create realistic schedules and clearly define dependencies.
Step 2: Define the timeline and the duration of the tasks

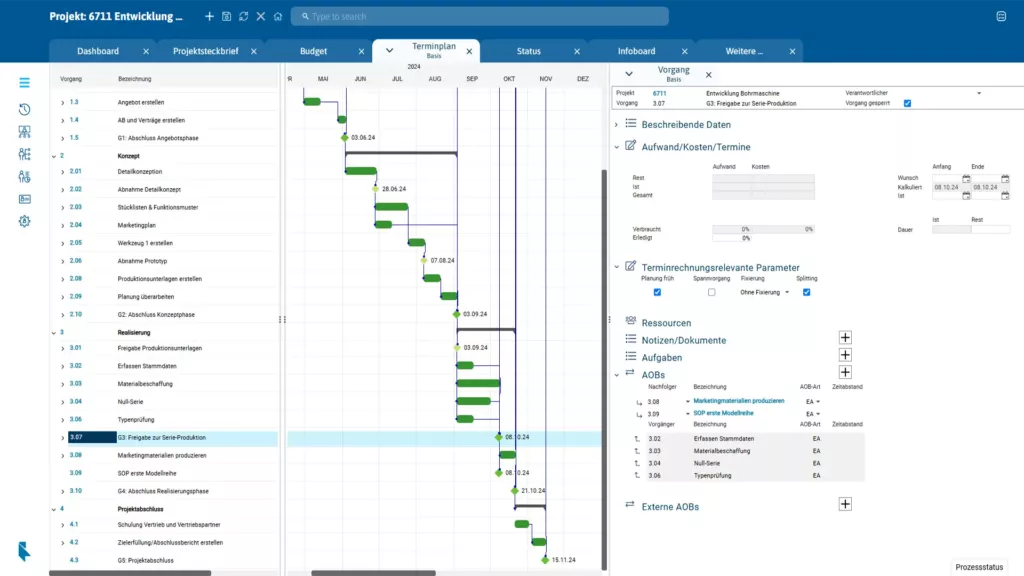

The timeline of the project is defined by setting the overall duration and the start and end dates of the individual tasks. The overall duration of the project is calculated in the project core data.
To ensure the logical sequence of the tasks, temporal dependencies, so-called links, are assigned in the schedule. They ensure that a postponement of a task is automatically taken into account for dependent tasks.
The system also enables cross-project links, which means that tasks or milestones from other projects can be integrated. This ensures a clear presentation and helps to avoid possible time overlaps.
Step 3: Add milestones

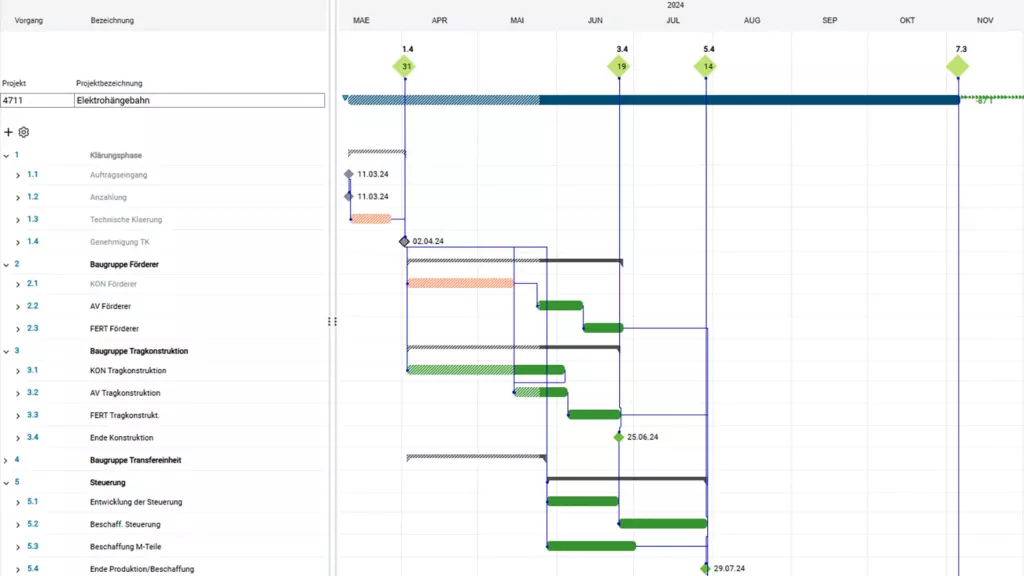

Milestones are defined in the Gantt chart to mark important interim goals, reviews or deadlines in the course of the project. They are marked on the timeline in the schedule and linked to the corresponding tasks.
Milestones can be assigned to persons responsible to ensure their traceability. Furthermore, there are master milestones, also called gates. This allows for a superordinate steering function in the project.
PLANTA furthermore facilitates the implementation of an approval process in which particular process steps or milestones are only released after they have been approved. This ensures that dependencies between project phases are taken into consideration and the subsequent steps can only be initiated upon fulfillment of the necessary criteria.
Step 4: Identify the critical path

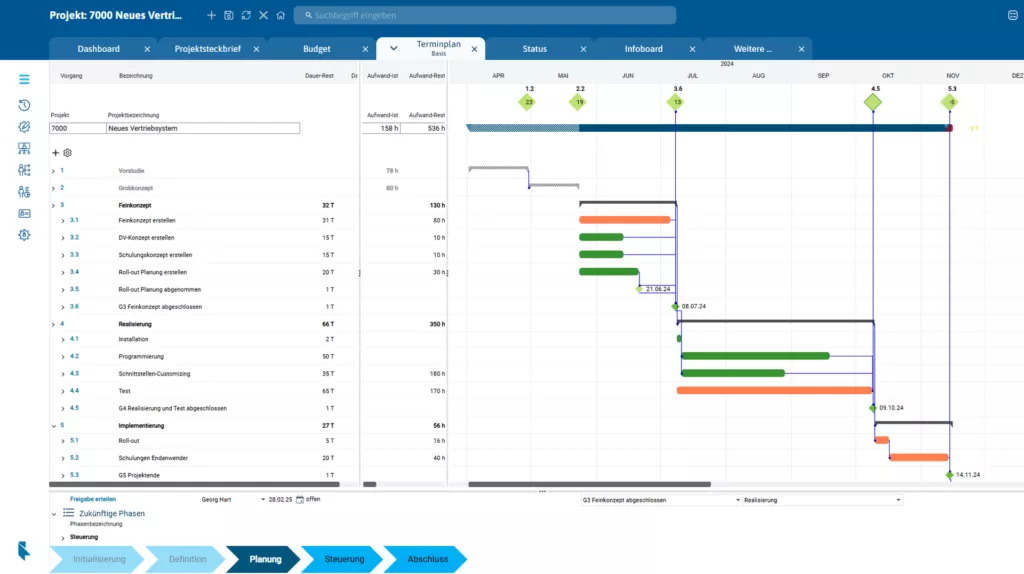

The “Critical path” function highlights all tasks that have an impact on the implementation of the project if there are no buffer times. By analyzing the critical path, the Gantt chart shows which tasks are time-critical and cannot be delayed.
For non-critical tasks, specific buffer times can be planned to compensate for possible delays without jeopardizing the overall project schedule. This offers efficient control of the project process and helps to identify and avoid bottlenecks at an early stage.
Step 5: Plan and assign resources
Resource planning is carried out by assigning personnel, budget and material to the individual tasks. First, the required resources are identified and an estimated effort is assigned to them. This effort refers to the time or costs that are planned for a specific task.
For a task, for example, it can be defined that an employee will probably need 80 hours. A cost estimate can also be made for external services, for example for programming work. This estimated effort helps to assign resources realistically and organize work with precision.
For specific tasks, certain employees can be assigned directly while tasks that are still vacant can be planned using departmental resources.
Financial expenses, such as services are also created as individual resources. The PLANTA dashboards can be used to check the utilization of resources in order to identify bottlenecks or overloads at an early stage.
Targeted optimizations of the resource allocation ensure that all tasks are completed efficiently and that the project remains within the planned time frame.
Step 6: Adapt and visualize charts
A Gantt chart can be organized more clearly by making different adjustments to its design. Important elements such as milestones or the critical path can be highlighted by color coding or symbols to allow for fast orientation.
In addition, the diagram can be exported and shared with stakeholders. Here, different formats such as PDF or presentations are available, so that project planning can easily be communicated and documented.
Step 7: Monitor and update the Gantt chart
Thanks to PLANTA Project, the Gantt chart is continuously monitored and automatically updated if changes occur. The project progress can be tracked in real-time, so that delays become immediately visible.
Depending on the selected planning position, e.g. “adherent to schedule”, initial dates remain in place and it is indicated where an overload occurs and additional resources are required.
Status reports are directly stored in the project and can be commented by the project manager, so that all persons involved are always up-to-date on current developments. If deviations occur, schedules can be adjusted or resources can be reallocated to ensure the success of the project.
Practical Examples: How to Use Gantt Charts
Below you will find examples of Gantt charts from different economic sectors.
Gantt Chart: Drilling Machine Development Project
Our first example shows the development of a new drilling machine. The individual project phases can be seen at a glance in the Gantt chart and are embedded in a time frame. Here, summary tasks bundle several tasks that belong to the same phase. At the end of each phase, a milestone marks its completion and the transition to the next phase.
The links between the individual processes and the final milestones are clearly visible. Thanks to this clear presentation, the project was developed within the specified time and completed to the customer’s satisfaction.
Gantt Chart: Automatic Emergency Call Project
Unlike the previous Gantt chart of the drilling machine project, this version contains detailed resource planning. Furthermore, the dependencies to subsequent processes are clearly visible in the expanded view.
Gantt Chart: New Website Project
The “New Website” project is part of the “Customer portal” program which comprises three independent projects. In the Gantt chart, the tasks are clearly structured – similar to the drilling machine project – and planned in the waterfall model. Individual tasks are organized in detail in agile Kanban boards as sprints, with the corresponding efforts being combined in the Gantt chart.
The affiliation and dependencies of this project within the overarching program and with respect to the other projects are clearly shown in the program schedule. The second screenshot shows the outline structure of the “New website” project with the individual phases unfolded.
Advantages and Disadvantages of Gantt Charts
Gantt charts are a proven tool in project management that provides a clear visual representation of the entire course of the project. They provide a clear structure by displaying tasks, dependencies and deadlines on a timeline.
A major advantage is the identification of the critical path, which makes it possible to recognize bottlenecks at an early stage and take targeted countermeasures. Milestones can also be easily planned, allowing important project stages to be highlighted and monitored.
However, there are also challenges. One major disadvantage is the high maintenance effort, especially if the project deadlines change frequently. Each adjustment requires an update of the data for the diagram in order to maintain planning accuracy.
In addition, Gantt charts can quickly become confusing for very complex projects with many parallel tasks. A presentation that is too detailed can make it more difficult to recognize important correlations. Gantt charts are often less suitable for agile methods that rely on iterative processes, as they are merely designed for linear project processes.
Below you will find a summarization of the advantages and disadvantages of Gantt charts in a table:
| Advantages | Disadvantages |
|---|---|
|
|
Gantt Charts in Comparison to Kanban
Kanban is one of 10 effective methods and strategies for multi-project management. This method is used to control work processes the tasks of which are displayed on a visual board and moved according to their progress.
In contrast to Gantt charts, which are based on a timeline and allow for long-term planning with dependencies, Kanban offers flexible and continuous task management.
Both approaches can be combined by planning certain project parts with Gantt and managing operational tasks with Kanban.
A comparison of Kanban and a Gantt chart reveals the following differences:
- Gantt chart: Particularly suitable for structured projects with clear schedules, dependencies and milestones.
- Kanban: Particularly suitable for dynamic, iterative work processes in which priorities change frequently.
Common Mistakes and How to Avoid Them
A common mistake when using Gantt charts is ignoring the critical path. If the critical path is not checked regularly, delays can go unnoticed and jeopardize the entire project. A solution is to continuously analyze the critical path and recognize bottlenecks at an early stage to initiate countermeasures in good time.
Another problem is the absence or incorrect setting of milestones. Without clearly defined milestones, there is a lack of orientation, which makes it difficult to track progress. To avoid this, milestones should be strategically planned and regularly reviewed to ensure that all key project phases are clearly marked.
The negligence of status reports can also lead to problems. If changes or delays are not documented and communicated, misunderstandings and ambiguities arise within the team. Regular updates of Gantt charts, supplemented by status reports with comments from the project manager, ensure transparency and facilitate coordination.
Another risk lies in the adoption of templates at face value without adjusting them to the specific requirements of the project. Although standardized templates provide a good basis, they should be reviewed and possibly adapted to meet individual project requirements.
Finally, clear communication is decisive for the successful implementation of Gantt charts. Regular meetings and open communication about the project status help to avoid misunderstandings and drive the project forward efficiently.
Conclusion: Why Are Gantt Charts Indispensable?
Gantt charts are a central tool for project planning, as they present complex processes clearly and enable structured scheduling. They are versatile, from small projects to long-term initiatives like in the automotive industry, where development projects run over several years.
The critical path and milestones are essential for identifying bottlenecks at an early stage and managing project phases in a targeted manner. Efficient use is best achieved with specialized project management tools. Optimum project planning with PLANTA for IT projects enables dynamic adjustments in real-time, even for complex projects.
FAQ
How does a Gantt view differ from a Kanban or Scrum view?
Gantt charts provide a linear, time-based representation of tasks, dependencies and milestones, while other project management tools such as Kanban or Scrum rely on flexible, iterative processes. Compared to agile methods, Gantt charts are particularly suitable for long-term projects with fixed deadlines.
Can Gantt charts also be used in an agile manner?
A Gantt chart can be used in an agile manner by flexibly planning certain phases within a project. This allows fixed milestones to be combined with agile work phases, resulting in hybrid planning. This method makes it possible to combine a long-term structure with short-term adaptability, for example through sprints within a defined project phase.
How detailed should a Gantt chart be?
A Gantt chart should contain all relevant tasks that are required for the achievement of milestones as well as all relevant tasks that have an impact on the critical path. Too many details can make the overview difficult, so only essential steps and dependencies should be included. Smaller tasks that have no direct influence on the schedule can be managed in separate lists or agile boards.
